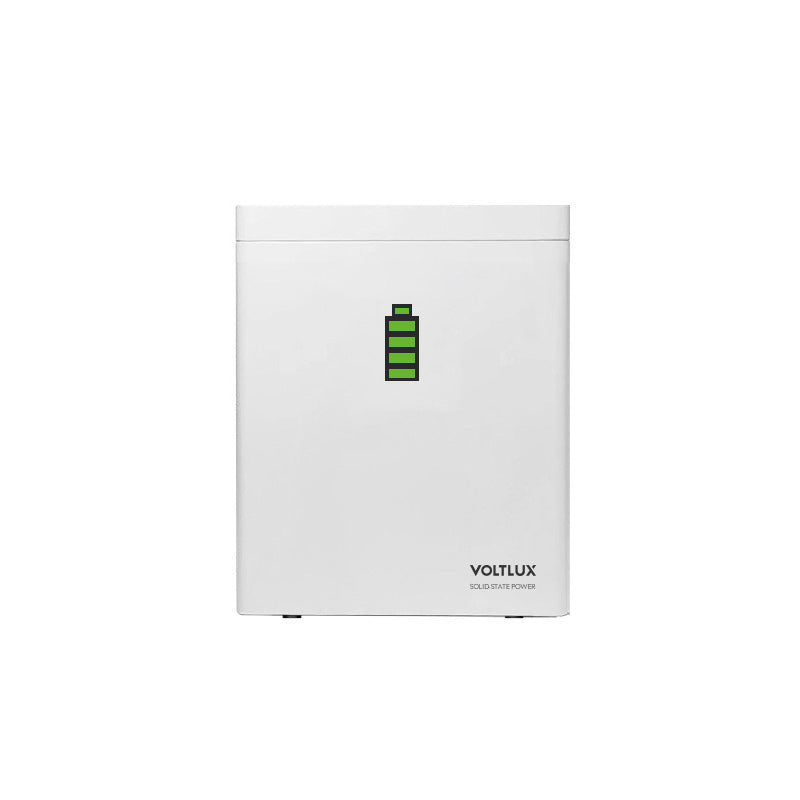

5.12kWh LV Solid-State Battery

⚫ The whole battery pack is non-toxic, pollution-free and environmentally friendly
⚫ The anode material is Solid State Cells, which has good safety performance and long cycle life
⚫ Battery management battery pack (BMS) has over discharge protection, over
charge protection, over current protection, high/low temperature protections
⚫ The battery pack can automatically manage charging and discharging states and
balance the current and voltage of each battery
⚫ The battery pack is pre-wired and has gone through factory test, so quick
installation is available.

⚫MOS Solution
⚫ Cycle Life@25°C >6000
⚫ Capacity 5120/10240 Wh
⚫ Rated Voltage 51.2V
⚫ Peak Power 7680 1.5C/10200W 1C
⚫ Parallel Connection 16 units
⚫Automatically Assign Module Address No DIP Switch
⚫ LFP Battery Cells Solid-State
⚫ Max Recommended DOD (Capacity):90%
