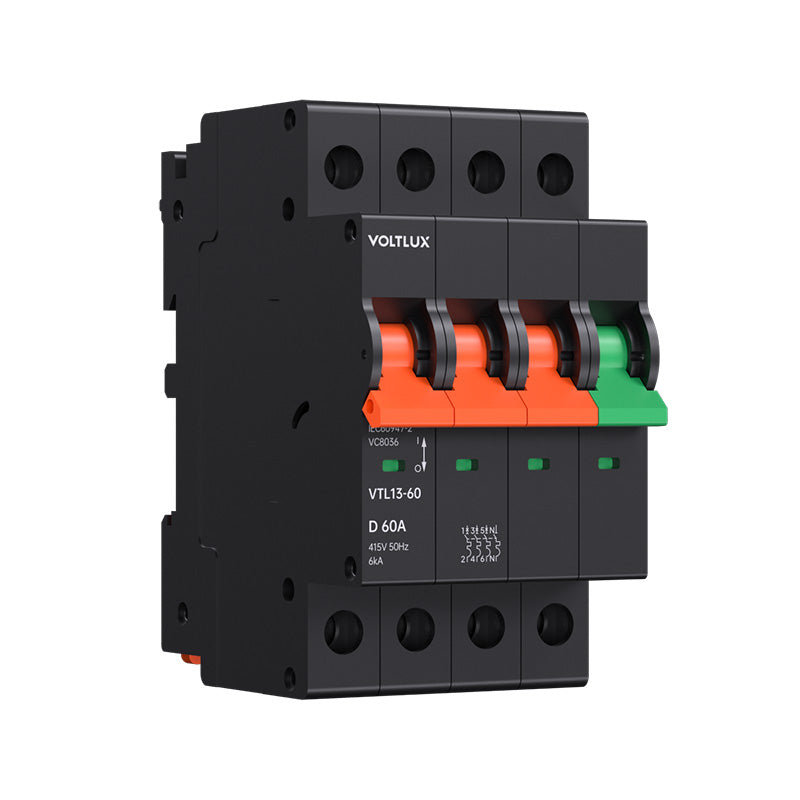

Dual Mount 13mm MCBs 5-60A 1P（ D curve）

VTL13-60 series small circuit breakers have functions such as short circuit protection, overload protection, control, isolation, etc. This series of circuit breakers is suitable for low-voltage termina distribution line protection in industries such as industrial, civil buildings, energy, communication and infrastructure, with an AC frequency of
50Hz/60Hz, a rated working voltage of AC240/400V and a rated working current of 63A.
Product standard: 60947-2
Width of per pole:13 mm wide module

Electric parameter:
Number of poles ： One, two, three, four pole, 1 + N and 3 + N
Rated Current: 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 (30°C)
Operating voltage (Ue) VAC: 1P,2P 240/400 ,3P,4P 400
Breaking capacity (Icu) : 6KA
Standards: IEC 60947-2 ,VC 8036 compliant

D Curve:
Instantaneous trip: (10-14)In
Suitable for inductive and motor loads with high starting currents.
