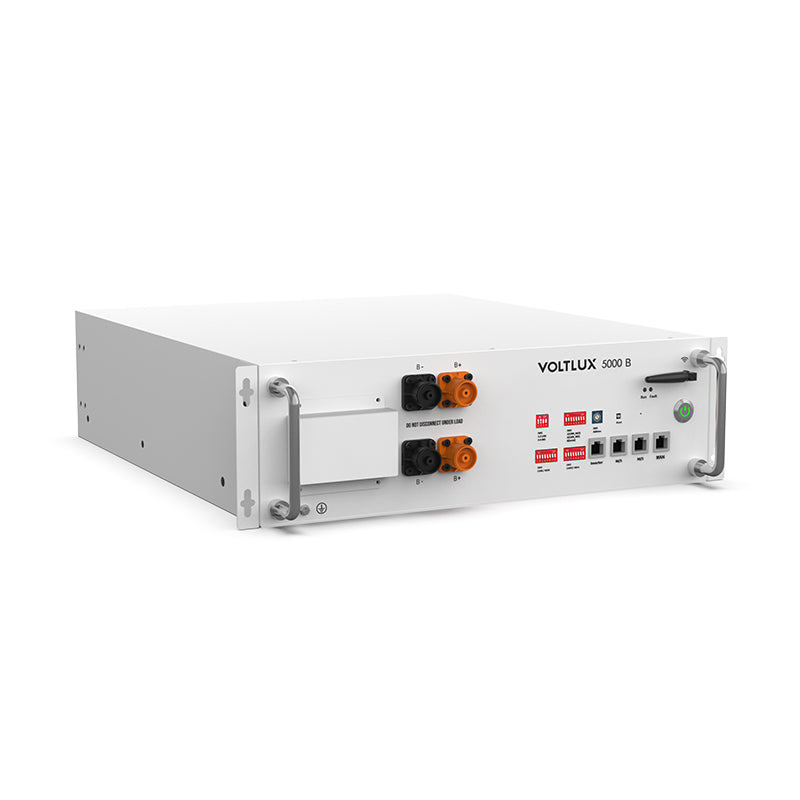

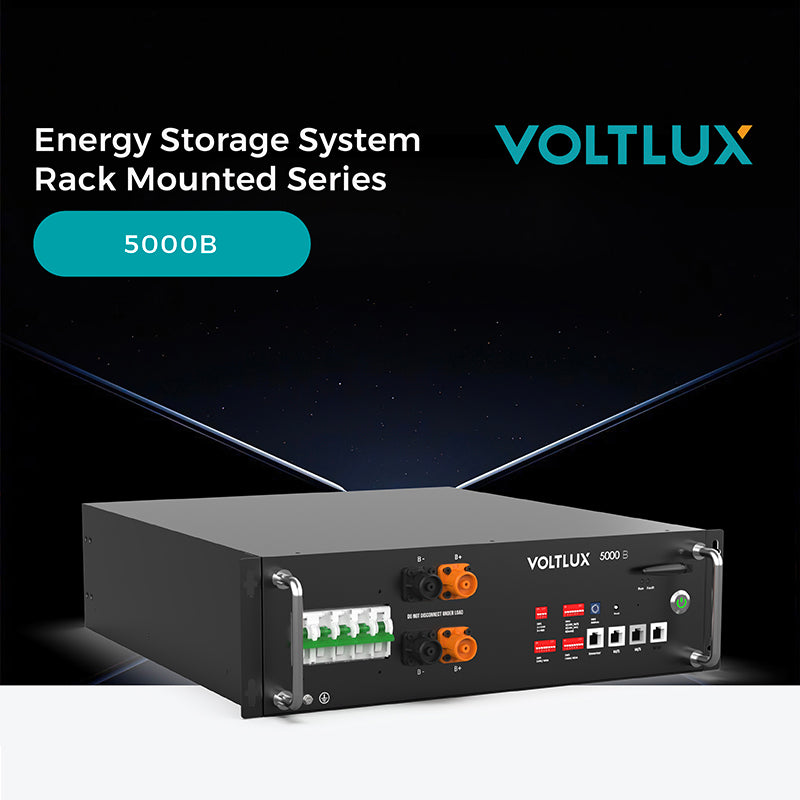

5kWh Energy Storage Battery-Rack Type

Name: 5kWh Energy Storage Battery-Rack Type
Brand: Voltlux
Price: 28000.0 ZAR
Availability: InStock

Capacity: 5.12kWh
Normal Dis-/Charge Power: 3.0kW
Peak Power (Only Discharge): 6kW for 3s
Rated Voltage: 48-56V.dc
Nominal Voltage： 51.2Vd.c
Max.Charge Voltage: 57.6Vd.c
Nominal Current: 60A
Max Connection Number: 16P /16S

SKU:

R 28,000.00

~~R 4,000.00~~ R 28,000.00

Sale Sold out

Power: 5.12kWh

Color: White Black

Product variants

Quantity

Available: 10 in stock

Features

⚫ The whole battery pack is non-toxic, pollution-free and environmentally friendly
⚫ The anode material is LiFePO4 Cells, which has good safety performance and long cycle life
⚫ Battery management battery pack (BMS) has over discharge protection, overcharge protection, over current protection, high/low temperature protections
⚫The battery pack can automatically manage charging and discharging states andbalance the current and voltage of each battery
⚫ The battery pack is pre-wired and has gone through factory test, so quickinstallation is available.

Specfication

⚫ Cycle Life@25°C >6000 Cycles
⚫Capacity 5120 Wh
⚫Usable Energy (DC):4.6kWh
⚫Normal Dis-/Charge Power:3.0kW
⚫Peak Power (Only Discharge):6kW for 3s
⚫Rated Voltage 48-56V.dc
⚫Nominal Voltage：51.2Vd.c
⚫Max.Charge Voltage:57.6Vd.c
⚫Nominal Current: 60A
⚫Parallel Connection 16 units
⚫Max Recommended DOD (Capacity):90%
